Building Executables from Graiphic Toolkits
How to build an executable ?
-
- Open GIM, select “Deployment” from the menu and click on “Post Build File“.
![post_build_file](https://tigr.graiphic.io/wp-content/uploads/2024/02/post_build_file.png)
-
- A window will open, in which you’ll find the file “Post-Build Action.vi“, which you’ll use to create an executable.
![file_explorer](https://tigr.graiphic.io/wp-content/uploads/2024/02/file_explorer.png)
-

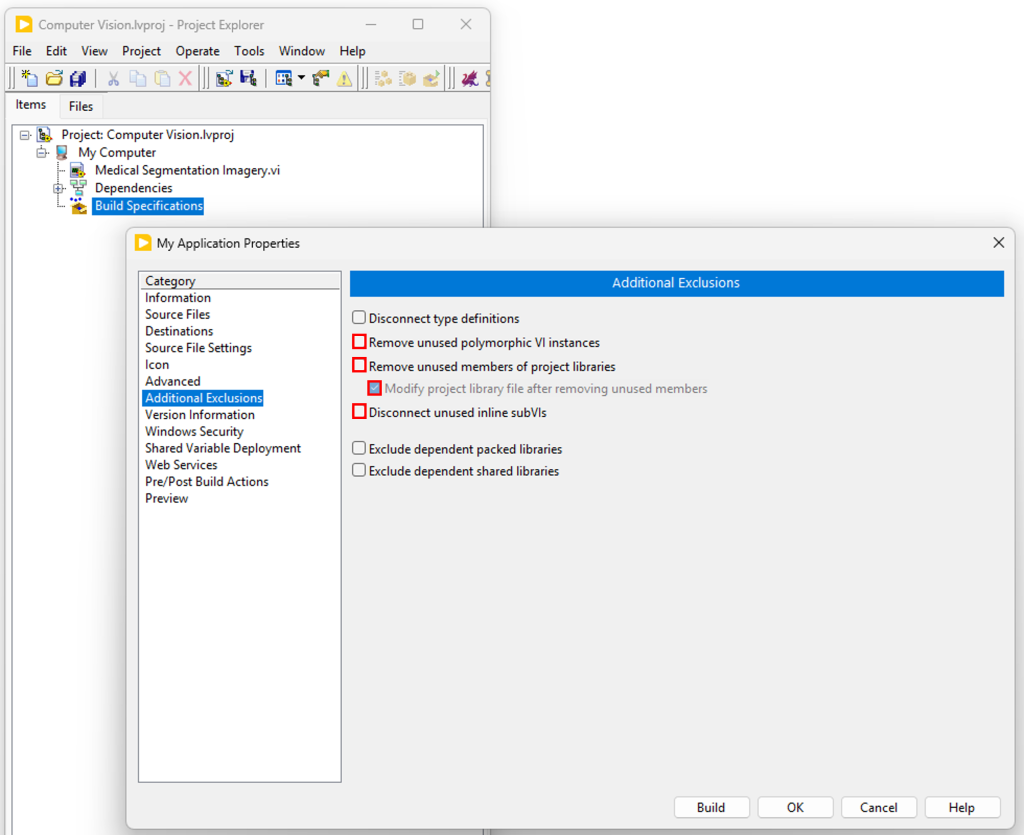

- Create your executable and in the “Additional Exclusions” tab, uncheck “Remove unused polymorphic VI instances“, “Remove unused members of project libraries” and “Disconnect unused inline subVIs“.
![add_exclusions](https://tigr.graiphic.io/wp-content/uploads/2024/02/add_exclusions.png)
-
- Still in your executable’s properties, go to the “Pre/Post Build Actions” tab, check “Execute VI after build” and add the “Post-Build Action.vi” VI we retrieved in step 1.
![pre_post_build](https://tigr.graiphic.io/wp-content/uploads/2024/02/pre_post_build.jpg)
-

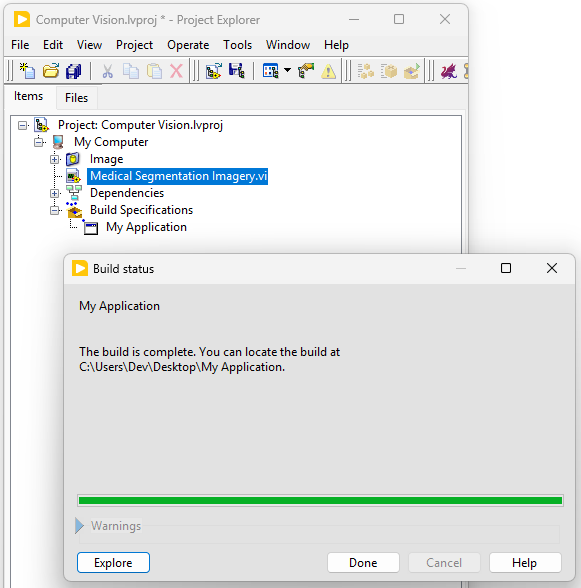

- Run the build and wait for the front panel to appear, which will allow you to retrieve the DLLs used by the GRAIPHIC toolkit.

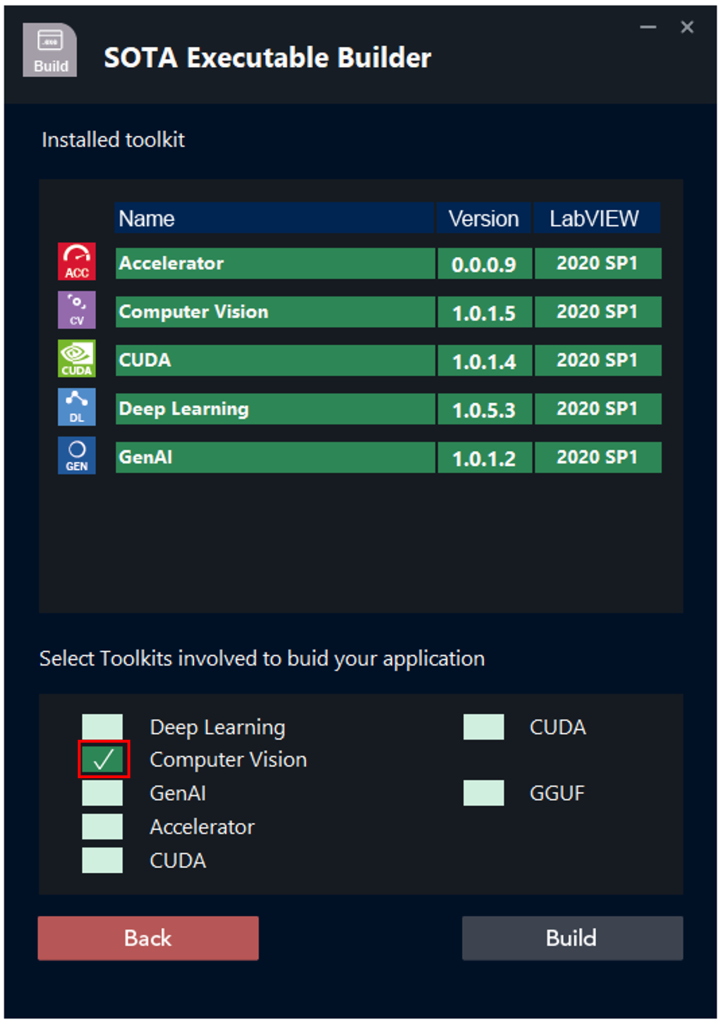

- On the first page, select the toolkit(s) present in your executable.
![post_build_1](https://tigr.graiphic.io/wp-content/uploads/2024/02/post_build_1.png)
-
- On the second page, select the hardware(s) compatible with the toolkit(s) in your executable.
![post_build_2](https://tigr.graiphic.io/wp-content/uploads/2024/02/post_build_2.png)
